In today’s demanding construction landscape, jumbo HSS have become essential for achieving structural integrity while maintaining aesthetic appeal, offering exceptional strength-to-weight ratios and versatile applications. You may have encountered frustrating limitations with conventional structural elements—insufficient load capacity, excessive weight, or compatibility issues—leading to design compromises, project delays, and budget overruns that could have been avoided with the right material selection.
Understanding Hollow Structural Sections (HSS) and Their Advantages
Large hollow structural sections represent a category of oversized steel profiles that provide superior performance characteristics compared to standard structural shapes. These large-dimension HSS offer exceptional torsional resistance, multi-axial loading capacity, and simplified connection designs that make them increasingly popular for complex structural applications.
The advantages of these specialized sections extend beyond basic structural performance:
- Superior strength-to-weight ratio: More efficient material distribution compared to solid sections
- Enhanced torsional resistance: Closed sections resist twisting forces better than open profiles
- Simplified connection design: Continuous faces provide greater flexibility for joint configurations
- Reduced surface area: Less painting and maintenance required compared to built-up sections
- Aesthetic appeal: Clean lines and modern appearance for exposed structural elements

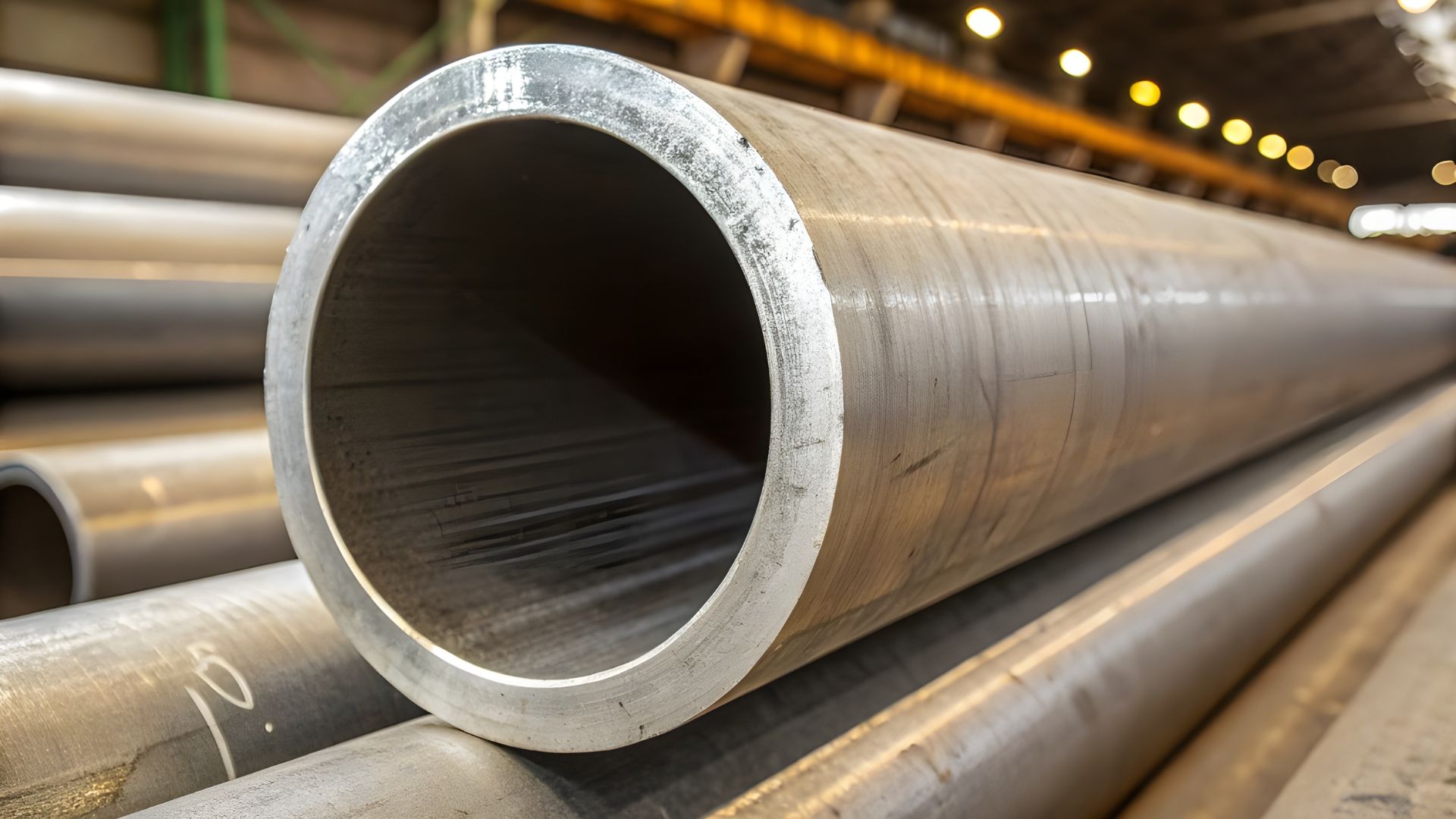

Defining Characteristics of Jumbo HSS
The term “jumbo” in structural hollow sections generally refers to sections with dimensions that exceed standard HSS sizes. Understanding these size parameters helps in the appropriate specification and application.
- Size thresholds: Typically, hollow sections with sides or diameters exceeding 16 inches enter the jumbo category
- Shape variations: Available in square, rectangular, and round configurations
- Wall thickness range: Common wall thicknesses range from 3/8″ to 1″ for most applications
- Material specifications: Usually manufactured to ASTM A500 Grade B/C or ASTM A1085 standards
- Manufacturing methods: Produced through electric resistance welding (ERW) or submerged arc welding (SAW) processes
Related: What Are H-Pile Beams? Applications and Advantages in Construction
Key Applications for Large Hollow Sections in Modern Construction
The exceptional properties of jumbo HSS make them ideal for applications where standard structural members would be insufficient or inefficient. These tubular sections excel in various demanding scenarios.
Transfer Structures and Long-Span Support
When designing transfer floors or long-span support systems, large-dimension hollow sections offer significant advantages over traditional wide flange or built-up sections. Their closed shape provides superior resistance to torsional buckling while maintaining a clean aesthetic.
- Transfer beams: Supporting discontinuous columns in mixed-use buildings
- Long-span roof structures: Creating column-free spaces in commercial and industrial buildings
- Cantilevered elements: Supporting projecting architectural features with minimal visual bulk
According to research from the Steel Tube Institute, properly designed hollow structural section transfer structures can reduce overall structural depth by up to 20% compared to conventional wide flange solutions, allowing for more efficient space utilization.
Column Applications in High-Load Scenarios
The symmetrical properties of jumbo HSS make them particularly well-suited for column applications where loads are applied from multiple directions or where architectural exposure demands an elegant solution.
- Perimeter columns: Combining structural performance with architectural expression
- High-load interior supports: Efficiently handling concentrated loads from multiple sources
- Braced frame elements: Providing axial strength and connection simplicity in lateral systems
Recent projects utilizing these specialized hollow sections have demonstrated up to 30% reduction in required footprint compared to equivalent capacity built-up sections, according to the American Institute of Steel Construction.
Specialized Infrastructure Applications
Beyond building structures, oversized HSS finds essential applications in infrastructure projects where durability, strength, and efficiency are paramount concerns.
- Bridge components: Truss elements, arch segments, and support structures
- Marine structures: Piers, docks, and offshore platform components
- Industrial frameworks: Support structures for heavy equipment and process systems
Selection Criteria for Jumbo HSS
Choosing the appropriate hollow structural sections for your project requires careful consideration of several factors to ensure optimal performance and cost-effectiveness.
Load Requirements and Structural Analysis
Proper sizing of large tubular sections begins with thorough structural analysis considering all applicable load cases and performance criteria.
- Axial compression capacity: Evaluate buckling resistance under design loads
- Bending moment capacity: Consider both in-plane and out-of-plane bending
- Combined loading effects: Analyze the interaction between axial, bending, and torsional forces
- Connection zone demands: Assess local stresses at connection points and reinforce as needed
Fabrication and Construction Considerations
The practical aspects of working with large hollow sections must be considered during the selection process.
- Transportation limitations: Consider size restrictions for shipping to the project site
- Lifting and handling requirements: Evaluate the weight and dimension impacts on the erection procedures
- Connection detailing: Plan for appropriate access for bolting or welding operations
- Tolerance management: Account for fabrication tolerances in connection designs
Sustainability and Life-Cycle Assessment
Modern construction increasingly demands consideration of environmental impacts and long-term performance.
- Material efficiency: Optimize section selection to minimize overall steel tonnage
- Corrosion protection: Consider exposure conditions and appropriate protection systems
- End-of-life recycling: Recognize the high recyclability of structural steel components
- Thermal performance: Evaluate the impact of hollow sections on building energy performance
You Might Like: The Advantages of Weathering Steel for Coastal Projects: Durability Meets Design
Common Challenges When Specifying Jumbo HSS
These structural profiles offer numerous advantages, but addressing specific challenges ensures successful implementation:
- Availability constraints: Limited producers may affect procurement schedules
- Connection complexity: Internal access limitations may complicate certain connection types
- Fire protection requirements: Hollow sections may require specific approaches to fire resistance
- Cost premiums: Larger sections typically command higher per-pound pricing than standard sizes
Innovative Connection Solutions for Jumbo HSS
The effectiveness of any structural system depends heavily on its connections. For large hollow structural sections, several proven connection approaches ensure structural integrity while simplifying fabrication.
- Through-plate connections: Steel plates passing through pre-cut slots in the HSS member
- External diaphragm plates: Connection plates welded to the exterior faces of the hollow section
- Blind bolting systems: Specialized fasteners that can be installed from one side only
- Cast connectors: Custom steel castings that create seamless transitions between members
Why Choose Spirit Metals for Your Structural Steel Needs
When your project demands oversized hollow sections, selecting the right supplier becomes as crucial as choosing the right material specifications. Spirit Metals offers distinct advantages for structural steel projects throughout Florida.
- Comprehensive inventory: We maintain extensive stocks of various jumbo HSS sizes and specifications, ensuring availability when you need it.
- Regional expertise: Our Florida-based team understands the unique structural challenges posed by coastal environments and hurricane-prone regions.
- Technical support: Our experienced staff can assist with material selection, specification compliance, and connection design recommendations.
- Logistics capabilities: We coordinate efficient delivery throughout Central Florida, Jacksonville, the eastern coast, Brooksville, and down to Ft Myers.
- Quality assurance: All our structural steel products meet or exceed applicable ASTM standards and come with complete material certification.
Conclusion: Maximizing Structural Performance with Jumbo HSS
Incorporating large-dimension hollow sections into your structural designs offers compelling advantages in efficiency, aesthetics, and performance. By understanding the unique properties of these specialized sections and selecting the appropriate size, shape, and specification for your application, you can achieve optimal structural integrity while maintaining architectural freedom.
At Spirit Metals, we’re committed to supporting your success by providing high-quality structural solutions along with the expertise you need to utilize them effectively. Contact us today to learn how our extensive selection of jumbo HSS can benefit your next project.
Whether you’re designing a signature high-rise, industrial facility, or critical infrastructure project throughout Florida, our team is ready to help you select the perfect structural solution for your needs.
