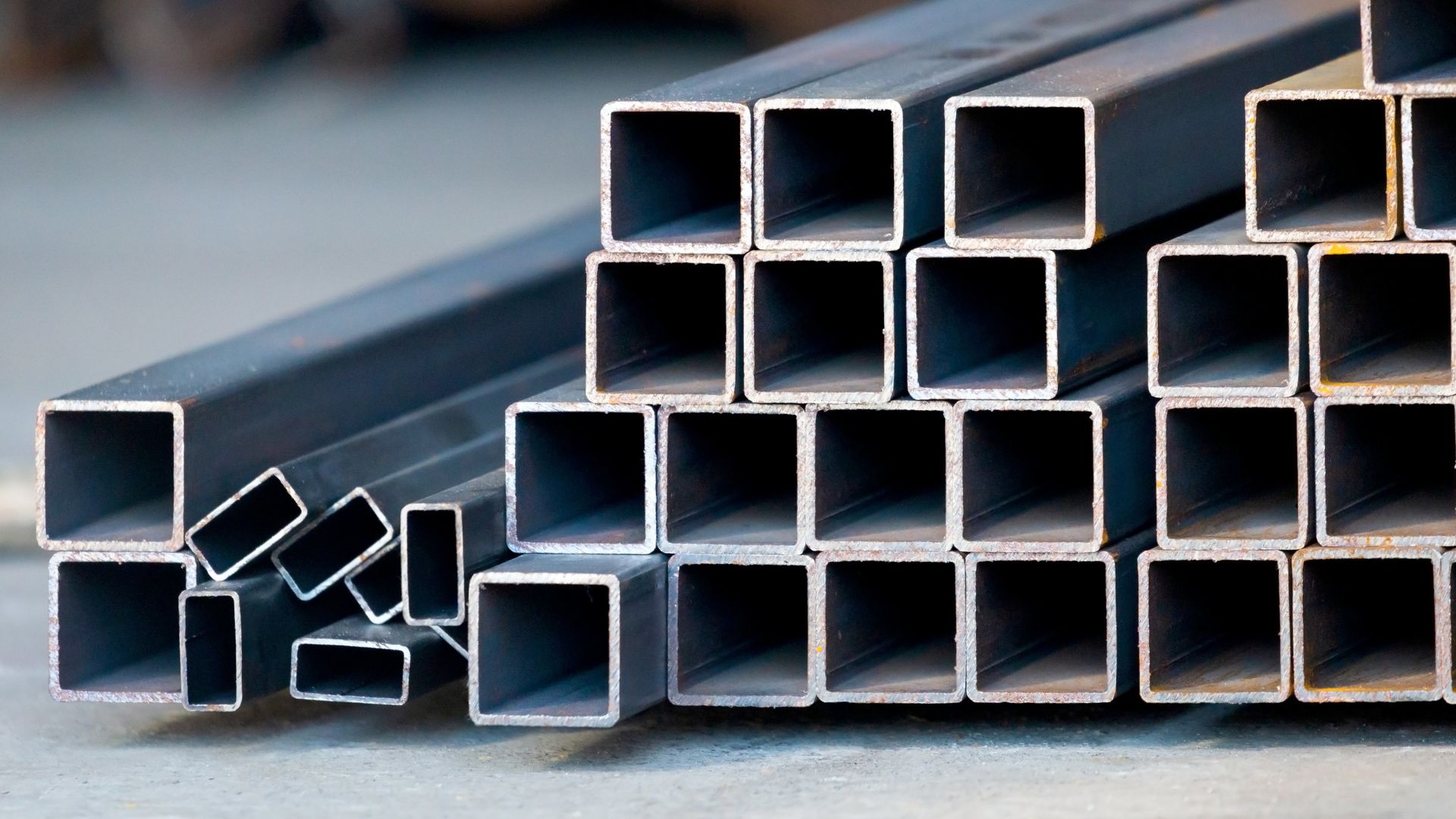

Square and Rectangular Tubing

The ASTM standard for tubing products is A500 and it is cold-formed, welded and seamless structural square and rectangular tubing. Also offered is DOM or ERW Round Tube. It comes in various grades but the most common are Grade B and Grade C.

Structural tube is used in all areas of construction, trailer chassis’ and as support columns for carports. Tubing normally comes in 20’, 24’, 40’ and 48’ lengths. The size and thickness are the determining factor on what lengths are offered. In the lighter thickness and dimensions, they are not usually offered in lengths greater than 24’. In larger dimensions and with thicker walls there are more choices to choose from in all lengths.

Tubing is cold-formed and has a high strength-to-weight ratio and is easily welded to other materials for support. It can also be used as a cost effective, light-weight substitution for the heavier, and solid, support columns like beams.  Spirit Metals offers a broad range of tube products and grades for the convenience of our customers.

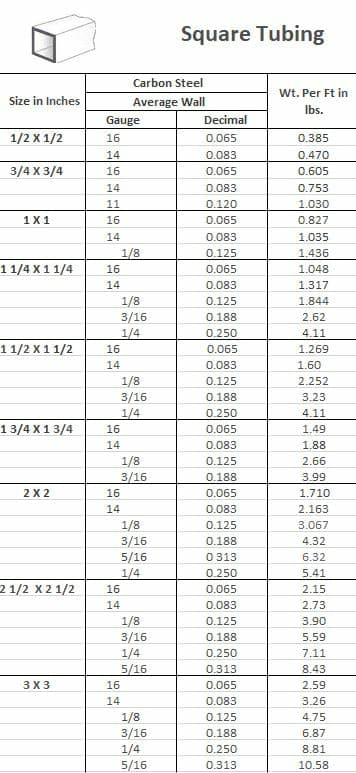

Square Tubing 1/2" - 3"
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal
1/2 x 1/2 16 0.065 0.385
14 0.083 0.470
3/4 x 3/4 16 0.065 0.605
14 0.083 0.753
11 0.120 1.030
1 x 1 16 0.065 1.827
14 0.083 1.035
1/8 0.125 1.436
1 1/4 x 1 1/4 16 0.065 1.048
14 0.083 1.317
1/8 0.125 1.844
3/16 0.188 2.62
1/4 0.250 4.11
1 1/2 x 1 1/2 16 0.065 1.269
14 0.083 1.60
1/8 0.125 2.252
3/16 0.188 3.23
1/4 0.250 4.11
1 3/4 x 1 3/4 16 0.065 1.49
14 0.083 1.88
1/8 0.125 2.66
3/16 0.188 3.99
2 x 2 16 0.065 1.710
14 0.083 2.163
1/8 0.125 3.067
3/16 0.188 4.32
1/4 0.250 5.41
5/16 0.313 6.32
2 1/2 x 2 1/2 16 0.065 2.15
14 0.083 2.73
1/8 0.125 3.90
3/16 0.188 5.59
1/4 0.250 7.11
5/16 0.313 8.43
3 x 3 16 0.065 2.59
14 0.083 3.26
1/8 0.125 4.75
3/16 0.188 6.87
1/4 0.250 8.81
5/16 0.313 10.58
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal

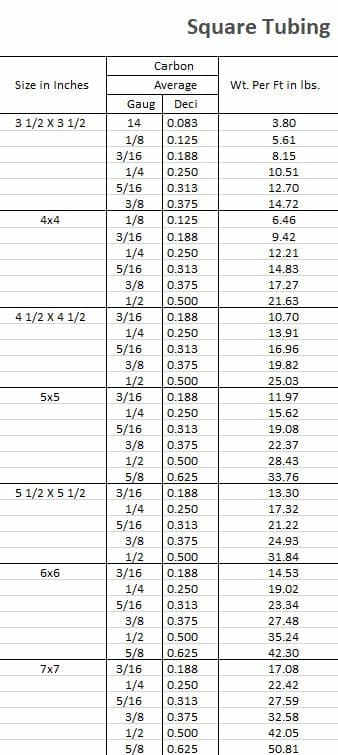

3 1/2 x 3 1/2 14 0.083 3.80
1/8 0.125 5.61
3/16 0.188 8.15
1/4 0.250 10.51
5/16 0.313 12.70
3/8 0.375 14.72
4 x 4 1/8 0.125 6.46
3/16 0.188 9.42
1/4 0.250 12.21
5/16 0.313 14.83
3/8 0.375 17.27
1/2 0.500 21.63
4 1/2 x 4 1/2 3/16 0.188 10.70
1/4 0.250 13.91
5/16 0.313 16.96
3/8 0.375 19.82
1/2 0.500 25.03
5 x 5 3/16 0.188 11.97
1/4 0.250 15.92
5/16 0.313 19.08
3/8 0.375 22.37
1/2 0.500 28.43
5/8 0.625 33.76
5 1/2 x 5 1/2 3/16 0.188 13.30
1/4 0.250 17.32
5/16 0.313 21.22
3/8 0.375 24.93
1/2 0.500 31.84
6 x 6 3/16 0.188 14.53
1/4 0.250 19.02
5/16 0.313 23.34
3/8 0.375 27.48
1/2 0.500 35.24
5/8 0.625 42.30
7 x 7 3/16 0.188 17.08
1/4 0.250 22.42
5/16 0.313 27.59
3/8 0.375 32.58
1/2 0.500 42.05
5/8 0.625 50.51

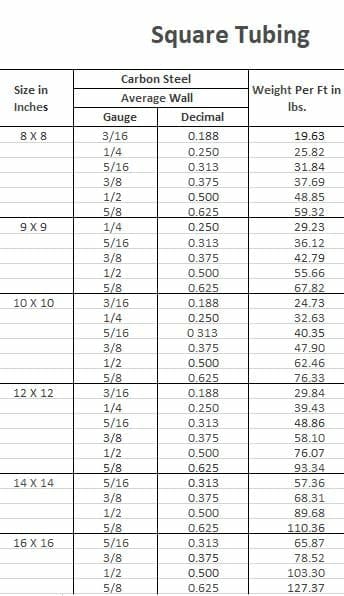

Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal
8 x 8 3/16 0.188 19.63
1/4 0.250 25.82
5/16 0.313 31.84
3/8 0.375 37.69
1/2 0.500 48.85
5/8 0.625 59.32
9 x 9 1/4 0.250 29.23
5/16 0.313 36.12
3/8 0.375 42.79
1/2 0.500 55.66
5/8 0.625 67.82
10 x 10 3/16 0.188 24.73
1/4 0.250 32.63
5/16 0.313 40.35
3/8 0.375 47.90
1/2 0.500 62.46
5/8 0.625 76.33
12 x 12 3/16 0.188 29.84
1/4 0.250 39.43
5/16 0.313 48.86
3/8 0.375 58.10
1/2 0.500 76.07
5/8 0.625 93.34
14 x 14 5/16 0.313 57.36
3/8 0.375 68.31
1/2 0.500 89.68
5/8 0.625 110.36
16 x 16 5/16 0.313 65.87
3/8 0.375 78.52
1/2 0.500 103.30
5/8 0.625 127.37

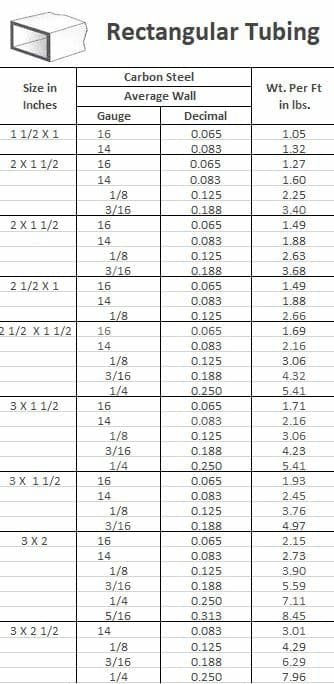

  Carbon Steel
Size in inches Average Wall Weight Per Foot in lbs.
  Gauge Decimal
1 1/2 x 1 16 0.065 1.05
  14 0.083 1.32
2 x 1 1/2 1/8 0.125 1.84
  16 0.065 1.27
  14 0.083 1.60
  1/8 0.125 2.25
  3/16 0.188 3.40
2 x 1 1/2 16 0.065 1.49
  14 0.083 1.88
  1/8 0.125 2.63
  3/16 0.188 3.68
2 1/2 x 1 16 0.065 1.49
  14 0.083 1.88
  1/8 0.125 2.66
2 1/2 x 1 1/2 16 0.065 1.69
  14 0.083 2.16
  1/8 0.125 3.06
  3/16 0.188 4.32
  1/4 0.250 5.41
3 x 1 1/2 16 0.065 1.71
  14 0.083 2.16
  1/8 0.125 3.06
  3/16 0.188 4.23
  1/4 0.250 5.41
3 x 1 1/2 16 0.065 1.93
  14 0.083 2.45
  1/8 0.125 3.76
  3/16 0.188 4.97
3 x 2 16 0.065 2.15
  14 0.083 2.73
  1/8 0.125 3.90
  3/16 0.188 5.59
  1/4 0.250 7.11
  5/16 0.313 8.45
3 x 2 1/2 14 0.083 3.01
  1/8 0.125 4.29
  3/16 0.188 6.29
  1/4 0.250 7.96

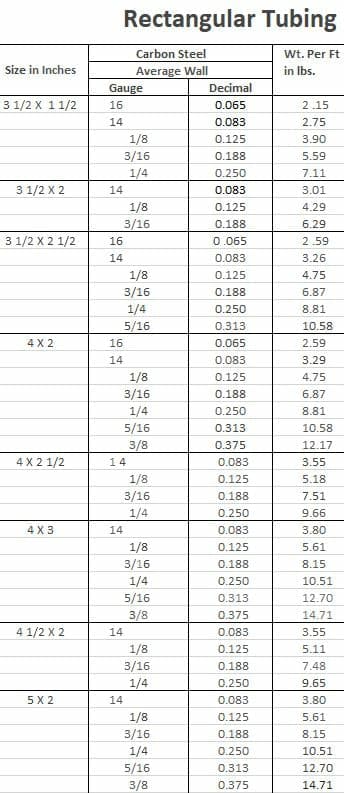

Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal
3 1/2 x 1 1/2 16 0.065 2.15
14 0.083 2.75
1/8 0.125 3.90
3/16 0.188 5.59
1/4 0.250 7.11
3 1/2 x 2 14 0.083 3.01
1/8 0.125 4.29
3/16 0.188 6.29
3 1/2 x 2 1/2 16 0.065 2.59
14 0.083 3.29
1/8 0.125 4.75
3/16 0.188 6.87
1/4 0.250 8.81
5/16 0.313 10.58
4 x 2 16 0.065 2.59
14 0.083 3.29
1/8 0.125 4.75
3/16 0.188 6.87
1/4 0.250 8.81
5/16 0.313 10.58
3/8 0.375 12.17
4 x 2 1/2 14 0.083 3.55
1/8 0.125 5.18
3/16 0.188 7.51
1/4 0.250 9.66
4 x 3 14 0.083 3.80
1/8 0.125 5.61
3/16 0.188 8.15
1/4 0.250 10.51
5/16 0.313 12.70
3/8 0.375 14.71
4 1/2 x 2 14 0.083 3.55
1/8 0.125 5.11
3/16 0.188 7.48
1/4 0.250 9.65
5 x 2 14 0.083 3.80
1/8 0.125 5.61
3/16 0.188 8.15
1/4 0.250 10.51
5/16 0.313 12.70
3/8 0.375 14.71
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal

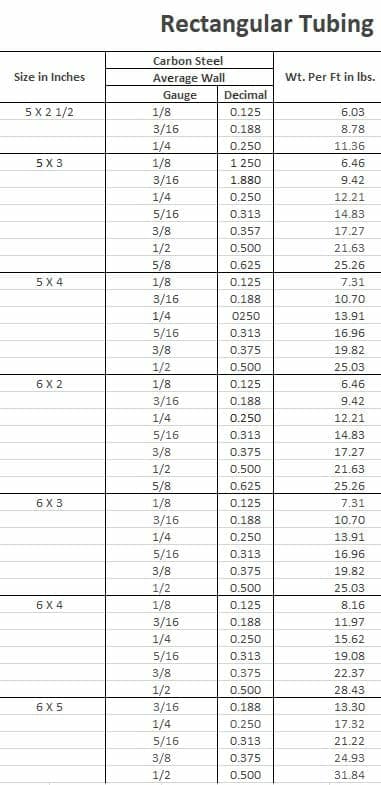

5 x 2 1/2 1/8 0.125 6.03
3/16 0.188 8.78
1/4 0.250 11.36
5 x 3 1/8 0.125 6.46
3/16 0.188 9.42
1/4 0.250 12.21
5/16 0.313 14.83
3/8 0.375 17.27
1/2 0.500 21.63
5/8 0.625 25.26
5 x 4 1/8 0.125 7.31
3/16 0.188 10.70
1/4 0.250 13.91
5/16 0.313 16.96
3/8 0.375 19.27
1/2 0.500 21.82
5/8 0.625 25.03
6 x 2 1/8 0.125 6.46
3/16 0.188 9.42
1/4 0.250 12.21
5/16 0.313 14.83
3/8 0.375 17.27
1/2 0.500 21.63
5/8 0.625 25.26
6 x 3 1/8 0.125 7.31
3/16 0.188 10.70
1/4 0.250 13.91
5/16 0.313 16.96
3/8 0.375 19.82
1/2 0.500 25.03
6 x 4 1/8 0.125 8.16
3/16 0.188 11.97
1/4 0.250 15.62
5/16 0.313 19.08
3/8 0.375 22.37
1/2 0.500 28.43
6 x 5 3/16 0.188 13.30
1/4 0.250 17.32
5/16 0.313 21.22
3/8 0.375 24.93
1/2 0.500 31.84
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal

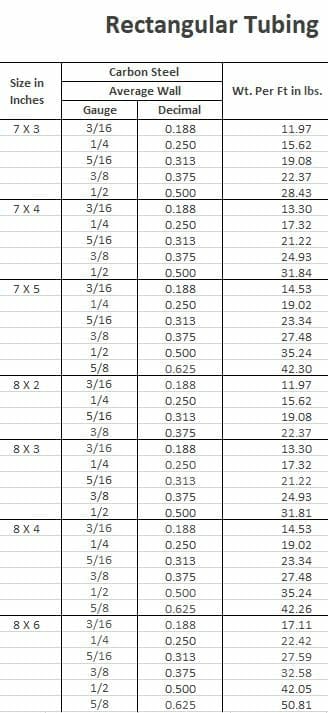

7 x 3 3/16 0.188 11.97
1/4 0.250 15.62
5/16 0.313 19.08
3/8 0.375 22.37
1/2 0.500 28.43
7 x 4 3/16 0.188 13.30
1/4 0.250 17.32
5/16 0.313 21.22
3/8 0.375 24.93
1/2 0.500 31.84
7 x 5 3/16 0.188 14.53
1/4 0.250 19.02
5/16 0.313 23.34
3/8 0.375 27.48
1/2 0.500 35.23
5/8 0.625 42.30
8 x 2 3/16 0.188 11.97
1/4 0.250 15.62
5/16 0.313 19.08
3/8 0.375 22.37
8 x 3 3/16 0.188 13.30
1/4 0.250 17.32
5/16 0.313 21.22
3/8 0.375 24.93
1/2 0.500 31.81
8 x 4 3/16 0.188 14.53
1/4 0.250 19.02
5/16 0.313 23.34
3/8 0.375 27.48
1/2 0.500 35.24
5/8 0.625 42.26
8 x 6 3/16 0.188 17.11
1/4 0.250 22.42
5/16 0.313 27.59
3/8 0.375 32.58
1/2 0.500 42.05
5/8 0.625 50.81
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal

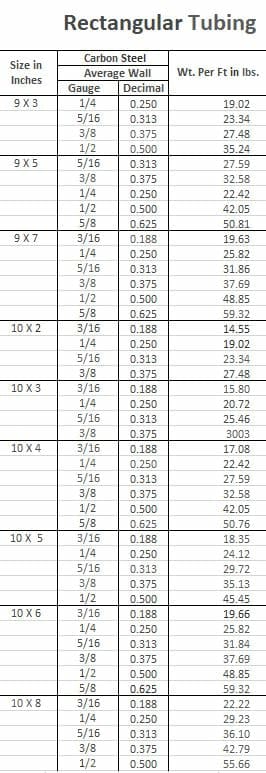

9 x 3 1/4 0.250 19.02
5/16 0.313 23.34
3/8 0.375 27.48
1/2 0.500 35.24
9 x 5 1/4 0.250 22.42
5/16 0.313 27.59
3/8 0.375 32.58
1/2 0.500 42.05
5/8 0.625 50.81
9 x 7 3/16 0.188 19.63
1/4 0.250 25.82
5/16 0.313 31.86
3/8 0.375 37.68
1/2 0.500 48.85
5/8 0.625 59.32
10 x 2 3/16 0.188 14.55
1/4 0.250 19.02
5/16 0.313 23.34
3/8 0.375 27.48
10 x 3 3/16 0.188 15.80
1/4 0.250 20.72
5/16 0.313 25.46
3/8 0.375 30.03
1/2 0.500 48.85
5/8 0.625 59.32
10 x 4 3/16 0.188 17.08
1/4 0.250 22.42
5/16 0.313 27.59
3/8 0.375 32.58
1/2 0.500 42.05
5/8 0.625 50.76
10 x 5 3/16 0.188 18.35
1/4 0.250 24.82
5/16 0.313 29.72
3/8 0.375 35.13
1/2 0.500 45.45
10 x 6 3/16 0.188 19.66
1/4 0.250 25.82
5/16 0.313 31.84
3/8 0.375 37.69
1/2 0.500 48.85
5/8 0.625 59.32
10 x 8 3/16 0.188 22.22
1/4 0.250 29.23
5/16 0.313 36.10
3/8 0.375 42.79
1/2 0.500 55.66
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal

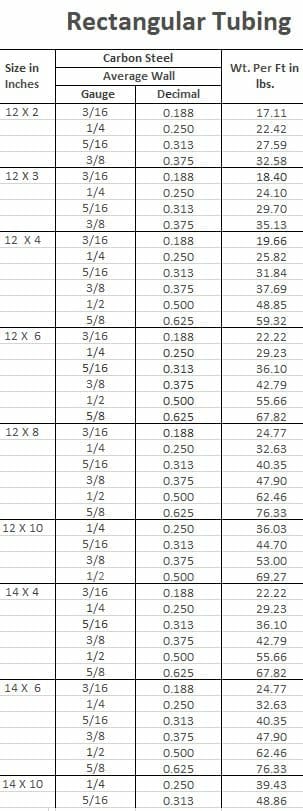

12 x 2 3/16 0.188 17.11
1/4 0.250 22.42
5/16 0.313 27.59
3/8 0.375 32.58
12 x 3 3/16 0.188 18.40
1/4 0.250 24.10
5/16 0.313 29.70
3/8 0.375 35.13
12 x 4 3/16 0.188 19.66
1/4 0.250 25.82
5/16 0.313 31.84
3/8 0.375 37.69
1/2 0.500 48.85
5/8 0.625 59.32
12 x 6 3/16 0.188 22.22
1/4 0.250 29.23
5/16 0.313 36.10
3/8 0.375 42.79
1/2 0.500 55.66
5/8 0.625 67.82
12 x 8 3/16 0.188 24.77
1/4 0.250 32.63
5/16 0.313 40.35
3/8 0.375 47.90
1/2 0.500 62.46
5/8 0.625 76.33
12 x 10 1/4 0.250 36.03
5/16 0.313 44.70
3/8 0.375 53.00
1/2 0.500 69.27
14 x 4 3/16 0.188 22.22
1/4 0.250 29.23
5/16 0.313 36.10
3/8 0.375 42.79
1/2 0.500 55.66
5/8 0.625 67.82
14 x 6 3/16 0.188 24.77
1/4 0.250 32.63
5/16 0.313 40.35
3/8 0.375 47.90
1/2 0.500 62.46
5/8 0.625 76.33
14 x 10 1/4 0.250 39.43
5/16 0.313 48.86
3/8 0.375 58.10
1/2 0.500 76.07
5/8 0.625 93.34
Size in Inches Carbon Steel Wt. Per Ft in lbs.
Average Wall
Guage Decimal

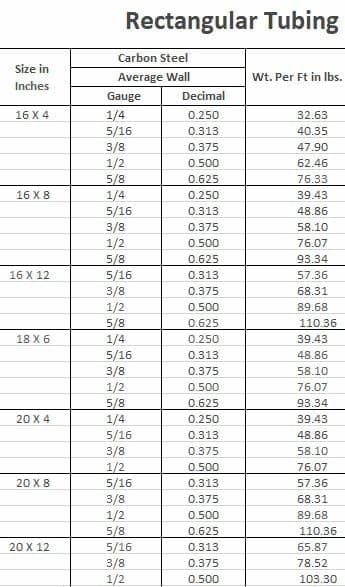

16 x 4 1/4 0.250 32.63
5/16 0.313 40.35
3/8 0.375 47.90
1/2 0.500 62.46
5/8 0.625 76.33
16 x 8 1/4 0.250 39.43
5/16 0.313 48.86
3/8 0.375 58.10
1/2 0.500 76.07
5/8 0.625 93.34
16 x 12 5/16 0.313 57.36
3/8 0.375 68.31
1/2 0.500 89.68
5/8 0.625 110.36
18 x 6 1/4 0.250 39.43
5/16 0.313 48.86
3/8 0.375 58.10
1/2 0.500 76.07
5/8 0.625 93.34
20 x 4 1/4 0.250 39.43
5/16 0.313 48.86
3/8 0.375 58.10
1/2 0.500 76.07
20 x 8 5/16 0.313 57.36
3/8 0.375 68.31
1/2 0.500 89.68
5/8 0.625 110.36
20 x 12 5/16 0.313 65.87
3/8 0.375 78.52
1/2 0.500 103.30
