Many people ask what the difference is between sheet and plate? Plate starts at 3/16” (7 GA) thickness and can go as thick as 10”. Sheet begins at 1/8” or 11 Gauge up to 30 Gauge. Spirit Metals offers both hot and cold rolled sheets in various sizes.

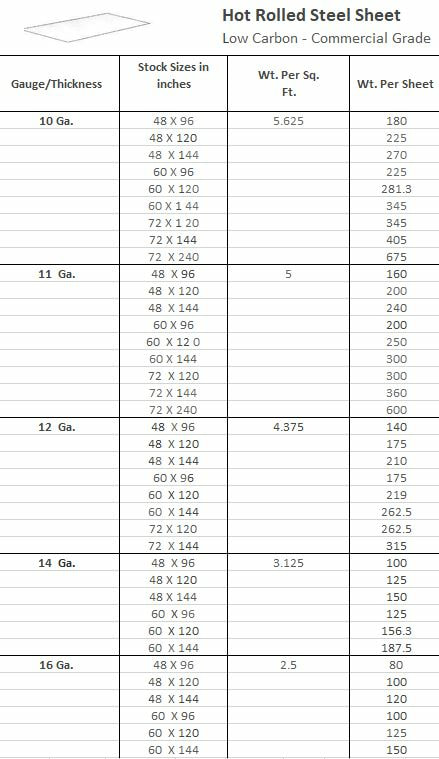

Hot Roll Steel Sheet - Low Carbon Commercial Grade

Gauge/Thickness	Stock Sizes in inches	Wt. Per Sq. Ft.	Wt. Per Sheet
10 Ga.	48 x 96	5.625	180
	48 x 120		225
	48 x 144		270
	60 x 96		225
	60 x 120		281.3
	60 x 144		345
	72 x 120		345
	72 x 144		405
	72 x 240		675
11 Ga.	48 x 96	5	160
	48 x 120		200
	48 x 144		240
	60 x 96		200
	60 x 120		250
	60 x 144		300
	72 x 120		300
	72 x 144		360
	72 x 240		600
12 Ga.	48 x 96	4.375	140
	48 x 120		175
	48 x 144		210
	60 x 96		175
	60 x 120		219
	60 x 144		262.5
	72 x 120		262.5
	72 x 144		315
14 Ga.	48 x 96	3.125	100
	48 x 120		125
	48 x 144		150
	60 x 96		125
	60 x 120		156.3
	60 x 144		187.5
16 Ga.	48 x 96	2.5	80
	48 x 120		100
	48 x 144		120
	60 x 96		100
	60 x 120		125
	60 x 144		150

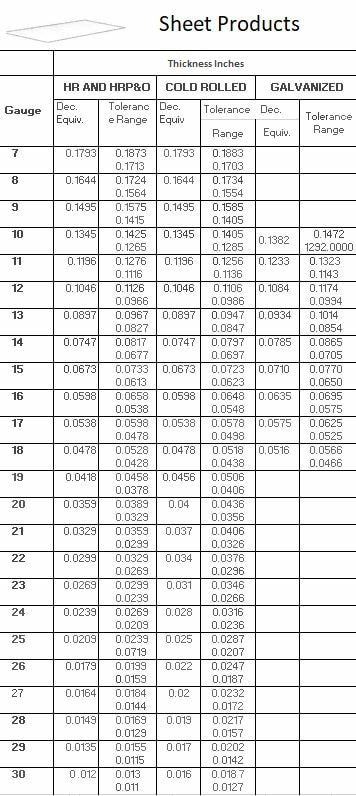

Sheet Products

Gauge	Thickness Inches
	HR AND HRP&O		COLD ROLLED		GALVANIZED
	Dec. Equiv.	Tolerance Range	Dec. Equiv.	Tolerance Deo.		Tolerance Range
	Dec. Equiv.	Tolerance Range	Dec. Equiv.	Range	Eqiuv.	Tolerance Range
7	0.1793	0.1873	0.1793	0.1883
		0.1713		0.1703
8	0.1644	0.1724	0.1644	0.1734
		0.1564		0.1554
9	0.1495	0.1575	0.1495	0.1585
		0.1415		0.1405
10	0.1345	0.1425	0.1345	0.1405	0.1382	0.1472
		0.1265		0.1285		1292.0
11	0.1196	0.1276	0.1196	0.1256	0.1233	0.1323
		0.1116		0.1136		0.1143
12	0.1046	0.1126	0.1046	0.1106	0.1084	0.1174
		0.0966		0.0986		0.0994
13	0.0897	0.0967	0.0897	0.0947	0.0934	0.1014
		0.0827		0.0847		0.0854
14	0.0747	0.0817	0.0747	0.0797	0.0785	0.0865
		0.0677		0.0697		0.0705
15	0.0673	0.0733	0.0673	0.0723	0.0710	0.0770
		0.0613		0.0623		0.0650
16	0.0598	0.0658	0.0598	0.0648	0.0635	0.0695
		0.0538		0.0548		0.0575
17	0.0538	0.0598	0.0538	0.0578	0.0575	0.0625
		0.0478		0.0498		0.0525
18	0.0478	0.0528	0.0478	0.0518	0.0516	0.0566
		0.0428		0.0438		0.0466
19	0.0418	0.0458	0.0456	0.0506
		0.0378		0.0406
20	0.0359	0.0389	0.04	0.0436
		0.0329		0.0356
21	0.0329	0.0359	0.037	0.0406
		0.0299		0.0326
22	0.0299	0.0329	0.034	0.0376
		0.0269		0.0296
23	0.0269	0.0299	0.031	0.0346
		0.0239		0.0266
24	0.0239	0.0269	0.028	0.0316
		0.0209		0.0236
25	0.0209	0.0239	0.025	0.0287
		0.0719		0.0207
26	0.0179	0.0199	0.022	0.0247
		0.0159		0.0187
27	0.0164	0.0184	0.02	0.0232
		0.0144		0.0172
28	0.0149	0.0169	0.019	0.0217
		0.0129		0.0157
29	0.0135	0.0155	0.017	0.0202
		0.0115		0.0142
30	0.012	0.013	0.016	0.0187
		0.011		0.0127

Carbon steel sheets – Carbon steel sheets in various gauges & grades. Hot rolled & cold rolled options for construction, manufacturing & general fabrication applications.
Stainless steel sheets – Stainless steel sheets in 304 & 316 grades for corrosive environments. Food service, marine & architectural applications with various finishes available.
Hot rolled steel sheets – Hot rolled steel sheets with mill finish for structural applications. Thicker gauges available for heavy-duty construction & industrial applications.
Cold rolled steel sheets – Cold rolled steel sheets with smooth finish for precision applications. Tight tolerances & consistent thickness for manufacturing & decorative uses.
Galvanized steel sheets – Galvanized steel sheets with zinc coating for corrosion protection. Outdoor applications, roofing & siding materials for Florida’s humid climate.
Painted steel sheets – Painted steel sheets with durable color coatings. Architectural panels, building siding & decorative applications with various color options available.
Diamond plate sheets – Diamond plate sheets for slip-resistant flooring & decorative applications. Truck beds, walkways & industrial platforms with raised diamond pattern.
Checker plate steel – Checker plate steel with raised pattern for traction & safety. Industrial flooring, stair treads & vehicle platforms requiring slip resistance.
Thin gauge sheet metal – Thin gauge sheet metal for lightweight applications & decorative elements. Precision cutting & forming for architectural panels & design features.
Heavy gauge steel plate – Heavy gauge steel plate for structural & industrial applications. Thick materials for heavy construction, machinery bases & pressure vessel applications.

Decorative sheet metal – Decorative sheet metal with various finishes & patterns. Architectural panels, building facades & interior design elements with custom cutting available.
Architectural sheet metal – Architectural sheet metal for building facades, panels & roofing systems. Modern designs with various materials & finishes for commercial buildings.
Industrial sheet metal – Industrial sheet metal for manufacturing, equipment & machinery applications. Heavy-duty materials with precision cutting for demanding industrial environments.
