Expanded Metal and Bar Grating

Expanded metal is commonly used to reinforce windows, gates, trailers, fencing, walkways, and grates.  It is highly durable and robust. This material allows the flow of air, water and light, and the holes are usually relatively small; therefore, it is a great way to protect from larger objects and debris from falling through the holes of the protected area. We offer standard 3/4# 9 and 1/2#13 and HD Bar grating. HD Bar grating is used in Heavy Duty (HD) applications and comes flat, serrated, galvanized, or uncoated. We provide such a wide variety of gratings we are sure to have what you are looking for!

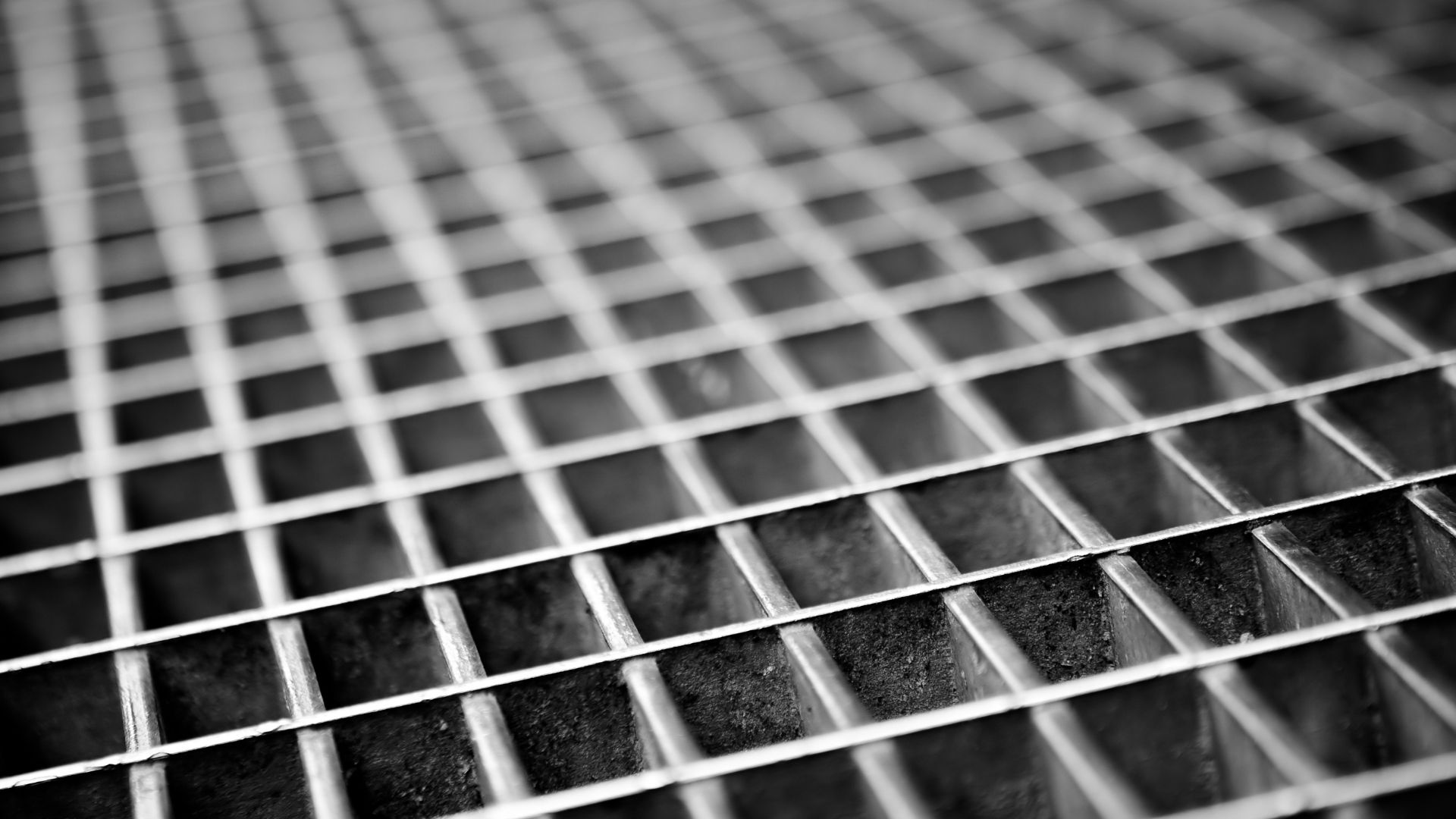

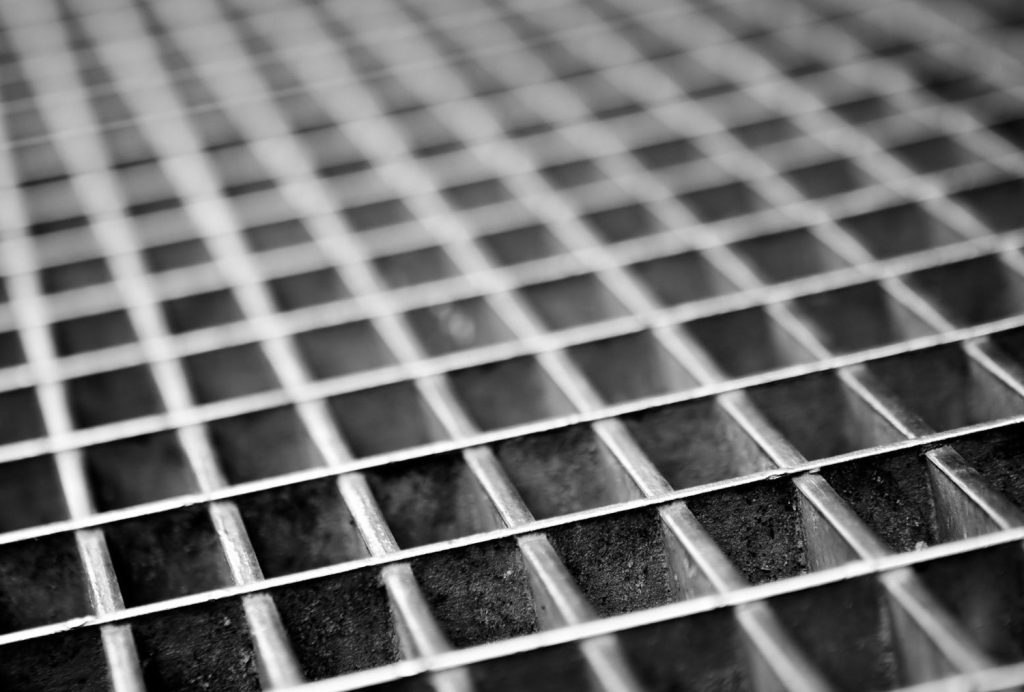

Bar Grating

If you are looking for something heavy-duty, we offer a variety of sizes in Bar Grating, both Standard and Serrated, plain or galvanized. HD Bar Grating, rated for forklift and vehicle traffic, is recommended. Contact us if you need a load table to see what you exactly need, and we will offer it to your specifications.

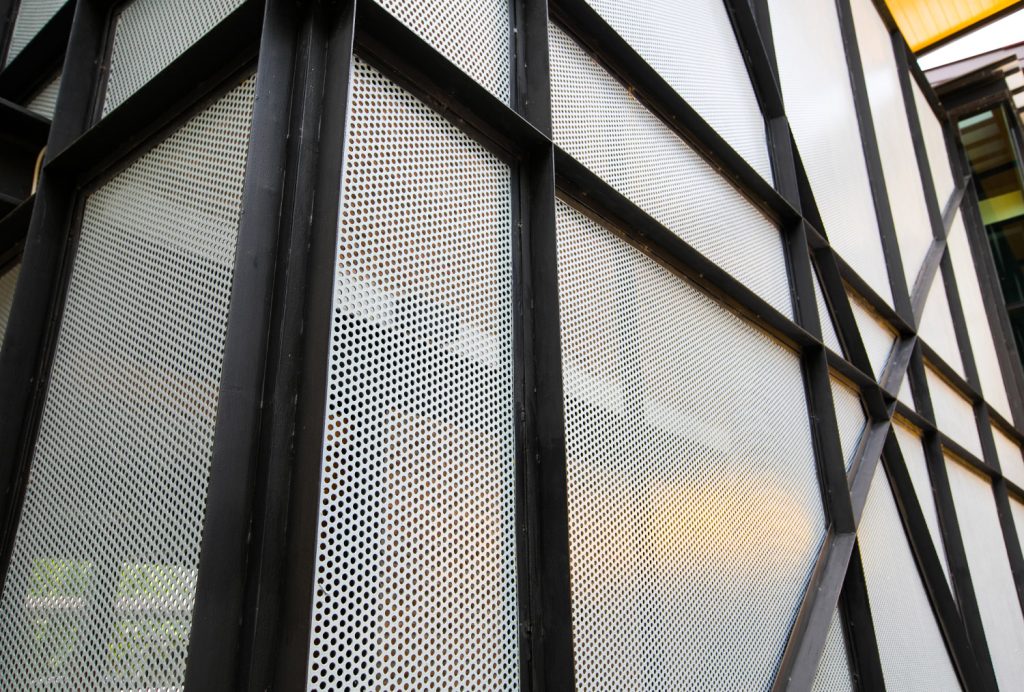

Another common type of metal in this category is Perforated metal. This is often used in similar situations and a variety of other applications. If you are looking for perforated metal, please do not hesitate to contact us with your specs, and we can quote for your specific needs.

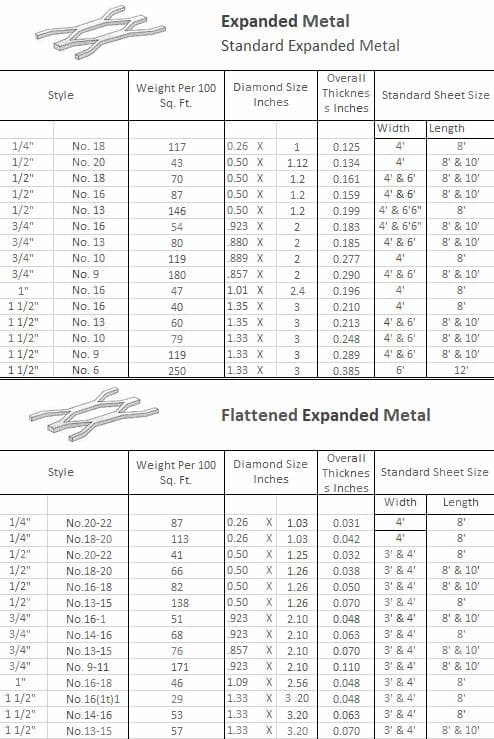

Flattened Expanded Metal
Style Weight Per 100 Sq. Ft.Diamond Size Inches Overall Thickness InchesStandard Sheet Size
      WidthLength
1/4"No.20-22870.26 X1.030.0314'8'
1/4"No.18-201130.26 X1.030.0424'8'
1/2"No.20-22410.5 X1.250.0323' & 4'8'
1/2"No. 18-20660.5 X1.260.0383' & 4'8' & 10'
1/2"No.16-18820.5 X1.260.053' & 4'8' & 10'
1/2"No.13-151380.5 X1.260.073' & 4'8'
3/4"No.16-151923 X2.10.0483' & 4'8' & 10'
3/4"No.14-1668923 X2.10.0633' & 4'8'
3/4"No.13-1576857 X2.10.073' & 4'8' & 10'
3/4"No. 9-11171923 X2.10.113' & 4'8' & 10'
1"No.16-18461.09 X2.560.0483' & 4'8'
1 1/2"No 16(1t)1291.33 X3.20.0483' & 4'8'
1 1/2"No.14-16531.33 X3.20.0633' & 4'8'
1 1/2"No. 13-15571.33 X3.20.073' & 4'8' & 10'
Standard Expanded Metal
Style Weight Per 100 Sq. Ft.Diamond Size Inches Overall Thickness InchesStandard Sheet Size
      WidthLength
1/4"No. 181170.26 X10.1254'8'
1/2"No. 20430.5 X1.120.1344'8' & 10'
1/2"No. 18700.5 X1.20.1614' & 6'8' & 10'
1/2"No. 16870.5 X1.20.1594' & 68' & 10'
1/2"No. 131460.5 X1.20.1994' & 6'6"8'
3/4"No. 1654.923 X20.1834' & 6'6"8' & 10'
3/4"No. 1380.880 X20.1854' & 6'8' & 10'
3/4"No. 10119.889 X20.2774'8'
3/4"No. 91800.857 X20.294' & 6'8' & 10'
1"No. 16471.01 X2.40.1964'8'
1 1/2"No. 16401.35 X30.214'8'
1 1/2"No. 13601.35 X30.2134' & 68' & 10'
1 1/2"No. 10791.33 X30.2484' & 68' & 10'
1 1/2"No. 91191.33 X30.2894' & 68' & 10'
1 1/2"No. 62501.33 X30.38516'12'
