Pipe & Round Tube

From Pipe Bollards used to protect property and designate Handicap Parking areas, to fencing, water flow and signage, pipe has unlimited potential for your project. Pipe comes in various sizes and thickness and the standard lengths are 21’ and 42’. Standard pipe used for ordinary purposes is ASTM -A53 and can come plain or galvanized but you can also blast and prime to a color of your choosing, dependent on the project specifications.

In ASTM-A53 – Sizes 1/8” to 24” in STD, ES and XXX and has similar applications as ASTM-A120 and it is a welded seamless NW pipe. Like the ASTM–A53, A106 is best suited for flanging, coiling bending and other welding situations and applications.

ASTM-A106 is a specialty grade, seamless pipe specifically used in high-temperature applications such as in the natural gas industry. There are instances whereby welded pipe can be offered, however it must be certified via Radiography as a welded pipe meeting all the standards and specifications required under the ASTM code of standards as A-106 Seamless. If you are looking for A-106 Seamless or Radiographed, contact us and one of valued team members can assist you further. Whatever the size, we can offer what you are looking for in diameters 1/8” up to 24” (or greater).

ASTM-A120 When looking for 1/8” to 12” pipe in STD, ES and XX, it will conform to and is most often used in air, gas, water and steam lines. It is a welded seamless and will most often be galvanized or black pipe. It is not intended for certain types of applications such as use in high-temperatures or in bending or coiling.

API Pipe – is a cold welded, seamless pipe used for moving gas, water, oil and is used in both the petroleum and natural gas industries.

Also offered is DOM or ERW Round Tube. It comes in various grades but the most common are Grade B and Grade C.

ID – Inside Diameter
NPS – Nominal Pipe Size
NW – Nominal Wall
OD – Outside Diameter

ES – Extra Small
STD – Standard wall size
SCH – Schedule
Ex Hvy – Extra Heavy
XX Hvy – XX Heavy

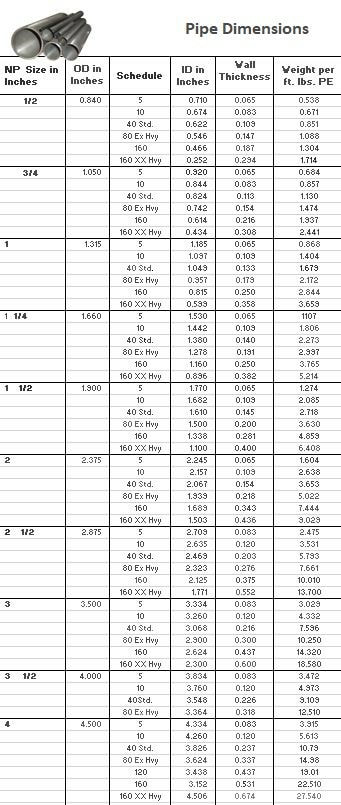

Pipe Dimensions - 1/2 - 4"

NPS in Inches	OD in Inches	Schedule	ID in Inches	Wall Thickness in Inches	Weigh per ft. lbs. PE
1/2	0.840	5	0.710	0.065	0.538
		10	0.674	0.083	0.671
		40 Std.	0.622	0.109	0.851
		80 Ex Hvy	0.546	0.147	1.088
		160	0.466	0.187	1.304
		160 XX Hvy	0.252	0.294	1.714
3/4	1.050	5	0.920	0.065	0.684
		10	0.844	0.083	0.857
		40 Std.	0.824	0.113	1.130
		80 Ex Hvy	0.742	0.154	1.474
		160	0.614	0.216	1.937
		160 XX Hvy	0.434	0.308	2.441
1	1.315	5	1.185	0.065	0.868
		10	1.097	0.109	1.404
		40 Std.	1.049	0.133	1.679
		80 Ex Hvy	0.957	0.179	2.172
		160	0.815	0.250	2.844
		160 XX Hvy	0.599	0.358	3.659
1 1/4	1.660	5	1.530	0.065	1.107
		10	1.442	0.109	1.806
		40 Std.	1.380	0.140	2.273
		80 Ex Hvy	1.278	0.191	2.997
		160	1.160	0.250	3.765
		160 XX Hvy	0.896	0.382	5.214
1 1/2	1.900	5	1.770	0.065	1.274
		10	1.682	0.109	2.085
		40 Std.	1.610	0.145	2.718
		80 Ex Hvy	1.500	0.200	3.630
		160	1.338	0.281	4.859
		160 XX Hvy	1.100	0.400	6.408
2	2.375	5	2.245	0.065	1.604
		10	2.157	0.109	2.638
		40 Std.	2.067	0.154	3.653
		80 Ex Hvy	1.939	0.218	5.022
		160	1.689	0.343	7.444
		160 XX Hvy	1.503	0.436	9.029
2 1/2	2.875	5	2.709	0.083	2.475
		10	2.635	0.120	3.531
		40 Std.	2.469	0.203	5.793
		80 Ex Hvy	2.323	0.276	7.661
		160	2.125	0.375	10.010
		160 XX Hvy	1.771	0.552	13.700
3	3.500	5	3.334	0.083	3.029
		10	3.260	0.120	4.332
		40 Std.	3.068	0.216	7.596
		80 Ex Hvy	2.900	0.300	10.250
		160	2.624	0.437	14.320
		160 XX Hvy	2.300	0.600	18.580
3 1/2	4.000	5	3.834	0.083	3.472
		10	3.760	0.120	4.973
		40 Std.	3.548	0.226	9.109
		80 Ex Hvy	3.364	0.318	12.510
4	4.500	5	4.334	0.083	3.915
		10	4.260	0.120	5.613
		40 Std.	3.826	0.237	10.790
		80 Ex Hvy	3.624	0.337	14.980
		120	3.438	0.437	19.010
		160	3.152	0.531	22.510
		160 XX Hvy	4.506	0.674	27.540

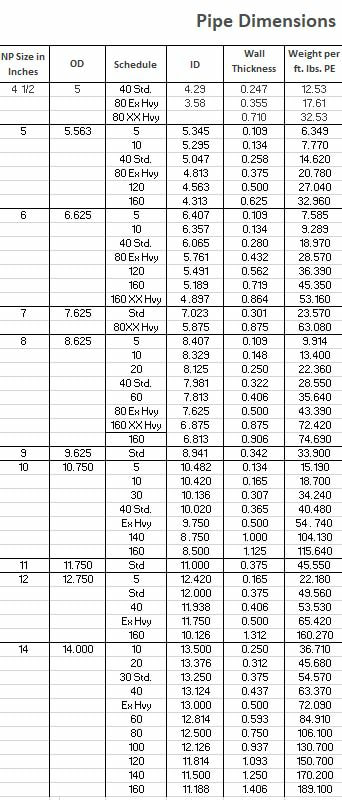

Pipe Dimensions - 4 1/2 - 14"

NPS in Inches	OD in Inches	Schedule	ID in Inches	Wall Thickness in Inches	Weigh per ft. lbs. PE
4 1/2	5.000	40 Std.	4.290	0.247	12.530
		80 Ex Hvy	3.580	0.355	17.610
		80 XX Hvy		0.710	32.530
5	5.563	5	5.345	0.109	6.349
		10	5.295	0.134	7.770
		40 Std.	5.047	0.258	14.620
		80 Ex Hvy	4.813	0.375	20.780
		120	4.563	0.500	27.040
		160	4.313	0.625	32.960
		160 XX Hvy	4.063	0.750	38.550
6	6.625	5	6.407	0.109	7.585
		10	6.357	0.134	9.289
		40 Std.	6.065	0.280	18.970
		80 Ex Hvy	5.761	0.432	28.570
		120	5.491	0.562	36.390
		160	5.189	0.719	45.350
		160 XX Hvy	4.897	0.864	53.160
7	7.625	Std.	7.023	0.301	23.570
		80 Ex Hvy	6.625	0.500	38.050
		80 XX Hvy	5.875	0.875	63.080
8	8.625	5	8.407	0.109	9.914
		10	8.329	0.148	13.400
		20	8.125	0.250	22.360
		40 Std.	7.981	0.322	28.550
		60	7.813	0.406	35.640
		80 Ex Hvy	7.625	0.500	43.390
		80 XX Hvy	6.875	0.875	72.420
		160	6.813	0.906	74.690
9	9.625	Std.	8.941	0.342	33.900
		80 Ex Hvy	8.625	0.500	48.720
10	10.750	5	10.482	0.134	15.190
		10	10.420	0.165	18.700
		30	10.136	0.307	34.240
		40 Std.	10.020	0.365	40.480
		Ex Hvy	9.750	0.500	54.740
		140	8.750	1.000	104.130
		160	8.500	1.125	115.640
11	11.750	Std.	11.00	0.375	45.550
		Ex Hvy	10.750	0.500	60.070
12	12.750	5	12.420	0.165	22.180
		Std.	12.000	0.375	49.560
		40	11.938	0.406	53.530
		Ex Hvy	11.750	0.500	65.420
		160	10.126	1.312	160.270
14	14.000	10	13.500	0.250	36.710
		20	13.376	0.312	45.680
		30 Std.	13.250	0.375	54.570
		40	13.124	0.437	63.370
		Ex Hvy	13.000	0.500	72.090
		60	12.814	0.593	84.910
		80	12.500	0.750	106.100
		100	12.126	0.937	130.700
		120	11.814	1.093	150.700
		140	11.500	1.250	170.200
		160	11.188	1.406	189.100

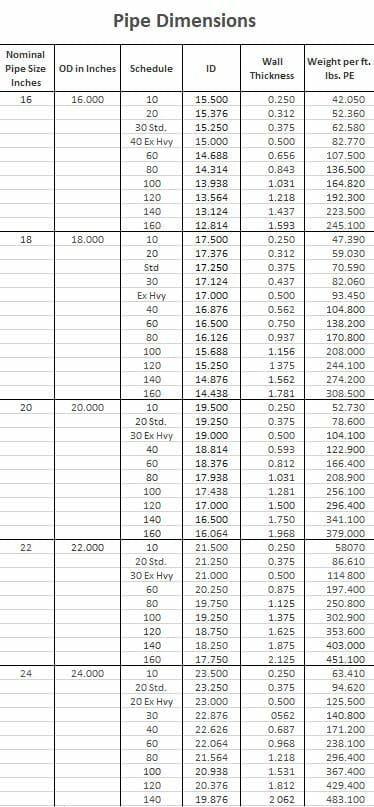

Pipe Dimensions - 16 - 24"

NPS in Inches	OD in Inches	Schedule	ID in Inches	Wall Thickness in Inches	Weigh per ft. lbs. PE
16	16.000	10	15.500	0.250	42.050
		20	15.376	0.31	52.360
		30 Std.	15.250	0.375	62.580
		40 Ex Hvy	15.000	0.500	82.770
		60	14.688	0.656	107.500
		80	14.314	0.843	136.500
		100	13.938	1.031	164.820
		120	13.564	1.218	192.300
		140	13.124	1.437	223.500
		160	12.814	1.593	245.100
18	18.000	10	17.500	0.250	47.390
		20	17.376	0.312	59.030
		Std.	17.250	0.375	70.590
		30	17.124	0.437	82.060
		Ex Hvy	17.000	0.500	93.450
		40	16.876	0.562	104.800
		60	16.500	0.750	138.200
		80	16.126	0.937	170.800
		100	15.688	1.156	208.000
		120	15.250	1.375	244.100
		140	14.876	1.562	274.200
		160	14.438	1.781	308.500
20	20.000	10	19.500	0.250	52.730
		20 Std.	19.250	0.375	78.600
		30 Ex Hvy	19.000	0.500	104.100
		40	18.814	0.593	122.900
		60	18.376	0.812	166.400
		80	17.938	1.031	208.900
		100	17.438	1.281	256.100
		120	17.000	1.500	296.400
		140	16.500	1.750	341.100
		160	16.064	1.968	379.000
22	22.000	10	21.500	0.250	58.070
		20 Std.	21.250	0.375	86.610
		30 Ex Hvy	21.000	0.500	114.800
		60	20.250	0.875	197.400
		80	19.750	1.125	250.800
		100	19.250	1.375	302.900
		120	18.750	1.625	353.600
		140	18.250	1.875	403.000
		160	17.750	2.125	451.100
24	24.000	10	23.500	0.250	63.410
		20 Std.	23.250	0.375	94.620
		20 Ex Hvy	23.000	0.500	125.500
		30	22.876	0.562	140.800
		40	22.626	0.687	171.200
		60	22.064	0.968	238.100
		80	21.564	1.218	296.400
		100	20.938	1.531	367.400
		120	20.367	1.812	429.400
		140	19.876	2.062	483.100
