Structural steel channel has a variety of applications and uses. Whether you are reinforcing a chassis in your boat trailer, using it in building construction or using it as a tract for your new barn doors, we have what you are looking for. Channel comes in Standard, MC and Miscellaneous types. The most common are Structural or MC Channels, which are offered in the various ASTM standards your project needs.

Another common type of channel is often referred to as a Cee channel. It is commonly used in metal roof projects and carports and has flanges on both sides of the web. If this is something you are looking for, look no further because we offer everything under one roof here at Spirit.

Are you looking for Purlins to complement your Cee Channels? We can offer a comprehensive quote for your project.

Standard Channel

Section Number	Weight Per Ft.	Depth of Section	Flange		Web Thickness
	Weight Per Ft.	Depth of Section	Width	Thickness	Web Thickness
	Pound	Inch	Inch	Inch	Inch
3	3.5	3	1.376	0.273	0.125
	4.1	3	1.41	0.273	0.17
	5	3	1.498	0.273	0.258
	6	3	1.596	0.273	0.356
4	4.5	4	1.585	0.149	0.163
	5.4	4	1.58	0.296	0.184
	7.25	4	1.721	0.296	0.321
5	6.7	5	1.75	0.32	0.19
	9	5	1.885	0.32	0.325
6	8.2	6	1.92	0.343	0.2
	10.5	6	2.034	0.343	0.314
	13	6	2.157	0.343	0.437
7	9.8	7	2.09	0.366	0.21
	12.25	7	2.194	0.366	0.303
	14.75	7	2.299	0.366	0.487
8	11.5	8	2.26	0.39	0.22
	13.75	8	2.343	0.39	0.303
	18.75	8	2.527	0.39	0.487
9	13.4	9	2.433	0.413	0.233
	15	9	2.485	0.413	0.285
	20	9	2.648	0.413	0.448
10	15.3	10	2.6	0.436	0.24
	20	10	2.739	0.436	0.379
	25	10	2.886	0.436	0.523
	30	10	3.033	0.436	0.673
12	20.7	12	2.942	0.501	0.282
	25	12	3.047	0.501	0.387
	30	12	3.17	0.501	0.51
15	33.9	15	3.4	0.65	0.4
	40	15	3.52	0.65	0.52
	50	15	3.716	0.65	0.716

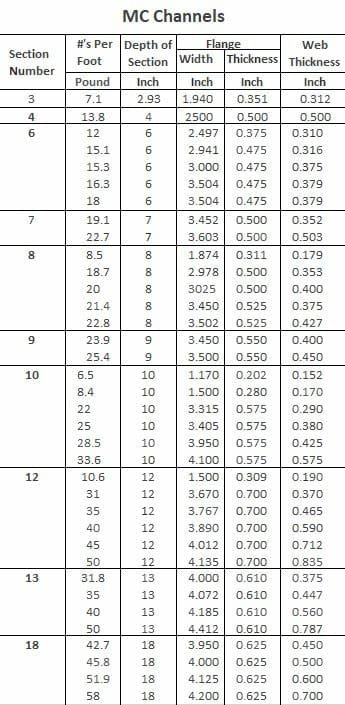

MC Channels

Section Number	Weight Per Ft.	Depth of Section	Flange		Web Thickness
	Weight Per Ft.	Depth of Section	Width	Thickness	Web Thickness
	Pound	Inch	Inch	Inch	Inch
3	7.1	2.93	1.940	0.351	0.312
4	13.8	4	2.500	0.500	0.500
6	12	6	2.497	0.375	0.310
	15.1	6	2.941	0.475	0.316
	15.3	6	3.000	0.475	0.375
	16.3	6	3.504	0.475	0.379
	18	6	3.504	0.475	0.379
7	19.1	7	3.452	0.500	0.352
	22.7	7	3.603	0.500	0.503
8	8.5	8	1.874	0.311	0.179
	18.7	8	2.978	0.500	0.353
	20	8	3.025	0.500	0.400
	21.4	8	3.450	0.525	0.375
	22.8	8	3.502	0.525	0.427
9	23.9	9	3.450	0.550	0.400
	25.4	9	3.500	0.550	0.450
10	6.5	10	1.170	0.202	0.152
	8.4	10	1.500	0.280	0.170
	22	10	3.315	0.575	0.290
	25	10	3.405	0.575	0.380
	28.5	10	3.950	0.575	0.425
	33.6	10	4.100	0.575	0.575
	41.1	10	4.321	0.575	0.796
12	10.6	12	1.500	0.309	0.190
	31	12	3.670	0.700	0.370
	35	12	3.767	0.700	0.465
	40	12	3.890	0.700	0.590
	45	12	4.012	0.700	0.712
	50	12	4.135	0.700	0.835
13	31.8	13	4.000	0.610	0.375
	35	13	4.072	0.610	0.447
	40	13	4.185	0.610	0.560
	50	13	4.412	0.610	0.787
18	42.7	18	3.950	0.625	0.450
	45.8	18	4.000	0.625	0.500
	51.9	18	4.125	0.625	0.600
	58	18	4.200	0.625	0.700

Bar Channel

Size in Inches			Estimated Ibs.
Section Depth	Flange Width	Web Thickness	Per Ft.	Per 20' Length
1/2	1/4	1/8	0.28	5.6
3/4	5/16	1/8	0.5	10
3/4	3/8	1/8	0.56	11.2
78	3/8	1/8	0.65	13
7/8	7/16	1/8	0.69	13.8
1	3/8	1/8	0.68	13.6
1	1/2	1/8	0.84	16.8
1 1/8	9/16	1/8	1.16	23.2
1 1/4	1/2	1/8	1.01	20.2
1 1/2	1/2	1/8	1.12	22.4
1 1/2	3/4	1/8	1.17	23.4
2	1/2	1/8	1.43	28.6
2	1	1/8	1.78	35.6
1 1/2	9/16	3/16	1.44	28.8
1 3/4	1/2	3/16	1.55	31
2	9/16	3/16	1.86	37.2
2	1	3/16	2.32	46.4
2 1/2	5/8	3/16	2.27	45.4
2	5/8	1/4	2.28	45.6
