Beams

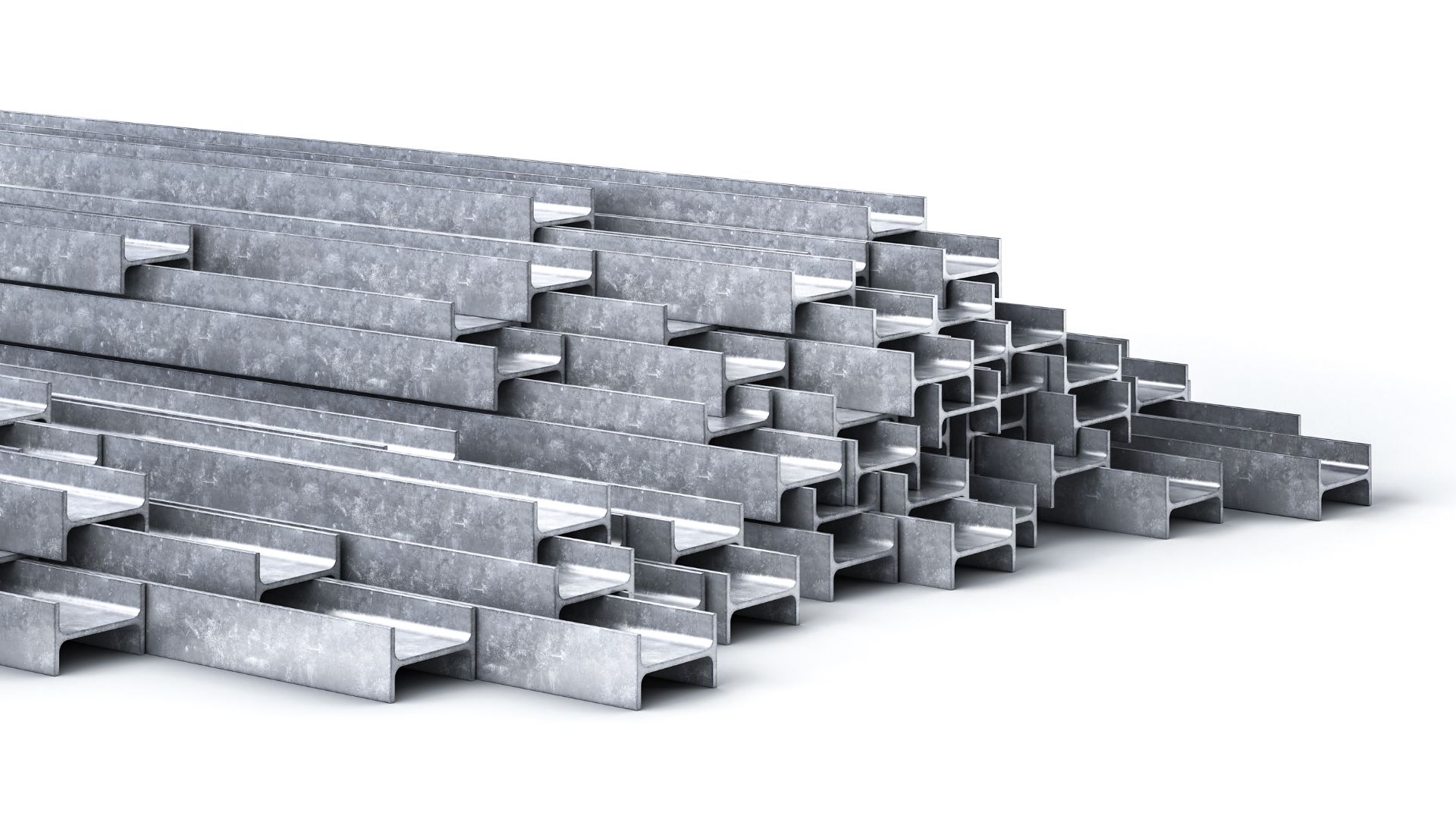

Beams, commonly referred to as I or H- Beams have either an H or I cross section. I-Beams are commonly used in construction and not as widely used as the H-Beam. I-Beams are used in specific applications due to the tapered flange, such as crane trolleys and in mobile homes to brace the flooring. WF Flange beams which do not have the tapered flange are commonly used in structural applications as support columns and connections. H-Pile Beams are used specifically in bridge construction. Whatever your project, Spirit offers an extensive beam selection to meet all your needs. *

*Miscellaneous beams are also used like I-beams and are used in similar projects. While we do offer both I and Miscellaneous beams, sizes are limited but we will do our best to meet your project specific needs.

Miscellaneous Beams

Standard Lengths 20'and 40'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
M6	4.4	6.00	1.844	0.171	0.114
M8	6.5	8.00	2.281	0.189	0.135
M10	8	9.95	2.690	0.182	0.141
	9	10.00	2.690	0.021	0.157
M12	10	11.97	3.250	0.180	0.149
	10.8	11.97	3.065	0.210	0.160
	11.8	12.00	3.065	0.225	0.177
M12.5	11.6	12.50	3.500	0.211	0.155
	12.4	12.53	3.750	0.228	0.155

Standard "I" Beams

Standard Lengths 20'-60'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
S3	5.7	3.00	2.330	0.260	0.170
	7.5	3.00	2.509	0.026	0.349
S4	7.7	4.00	2.660	0.293	0.193
	9.5	4.00	2.796	0.293	0.326
S5	10	5.00	3.000	0.326	0.214
	14.75	5.00	3.284	0.326	0.494
S6	12.5	6.00	3.332	0.359	0.232
	17.25	6.00	3.565	0.359	0.465
S7	15.3	7.00	3.662	0.392	0.252
	20	7.00	3.860	0.392	0.450
S8	18.4	8.00	4.001	0.425	0.271
	23	8.00	4.171	0.425	0.441
S10	25.4	10.00	4.661	0.491	0.311
	35	10.00	4.944	0.491	0.594
S12	31.8	12.00	5.000	0.544	0.350
	35	12.00	5.078	0.544	0.428
	40.8	12.00	5.252	0.659	0.462
	50	12.00	5.477	0.659	0.687
S15	42.9	15.00	5.501	0.622	0.411
	50	15.00	5.640	0.622	0.550
S18	54.7	18.00	6.001	0.691	0.461
	70	18.00	6.251	0.691	0.711
S20	66	20.00	6.255	0.795	0.505
	75	20.00	6.385	0.795	0.635
	86	20.30	7.060	0.920	0.660
	96	20.30	7.200	0.920	0.800
S24	80	24.00	7.000	0.870	0.500
	90	24.00	7.125	0.870	0.625
	100	24.00	7.245	0.870	0.745
	106	24.50	7.870	1.090	0.620
	121	24.50	8.050	1.090	0.800

Wide Flange Beams W4-W8

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W4	13	4.16	4.060	0.345	0.280
W5	16	5.01	5.000	0.300	0.240
	19	5.15	5.030	0.430	0.270
W6	8.5	5.83	3.940	0.194	0.170
	9	5.90	3.940	0.215	0.170
	12	6.03	4.000	0.280	0.230
	16	6.28	4.030	0.405	0.260
W6	15	5.99	5.990	0.260	0.230
	20	6.20	6.020	0.365	0.260
	25	6.38	6.080	0.455	0.320
W8	10	7.89	3.940	0.205	0.170
	13	7.99	4.000	0.255	0.230
	15	8.11	4.015	0.315	0.245
W8	18	8.14	5.250	0.330	0.230
	21	8.28	5.270	0.400	0.250
W8	24	7.93	6.490	0.400	0.245
	28	8.06	6.535	0.465	0.285
W8	31	8.00	7.995	0.435	0.285
	35	8.12	8.020	0.495	0.310
	40	8.25	8.070	0.560	0.360
	48	8.50	8.110	0.685	0.400
	58	8.75	8.220	0.810	0.510
	67	9.00	8.280	0.935	0.570

Wide Flange Beams W10-W12

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W10	12	9.87	3.960	0.210	0.190
	15	9.99	4.000	0.270	0.230
	17	10.11	4.010	0.330	0.240
	19	10.24	4.020	0.395	0.250
W10	22	10.17	5.75	0.36	0.24
W10	26	10.33	5.77	0.44	0.26
	30	10.47	5.81	0.51	0.3
	33	9.73	7.96	0.435	0.29
W10	39	9.92	7.985	0.53	0.315
	45	10.1	8020	0.62	0.35
	49	9.98	10	0.56	0.34
	54	10.09	10.03	0.615	0.37
	60	10.22	10.08	0.68	0.42
	68	10.4	10.13	0.77	0.47
	77	10.6	10.19	0.87	0.53
	88	10.84	10.265	0.99	0.605
	100	11.1	10.34	1.12	0.68
	112	11.36	10.415	1.25	0.755
W12	14	11.91	3.97	0.225	0.022
W12	16	11.99	3.99	0.265	0.22
	19	12.16	4.005	0.35	0.235
	22	12.31	4.03	0.425	0.26
	26	12.22	6.49	0.38	0.23
	30	12.34	6.52	0.44	0.26
	35	12.5	6.56	0.52	0.3
W12	40	11.94	8.005	0.515	0.295
	45	12.06	8.045	0.575	0.335
	50	12.19	8.08	0.64	0.37
W12	53	12.06	9.995	0.757	0.345
	58	12.19	10.01	0.64	0.36

Wide Flange Beams W12-W14

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W12	65	12.12	12	0.605	0.39
	72	12.25	12.04	0.67	0.43
	79	12.38	12.08	0.735	0.47
	87	12.53	12.125	0.81	0.515
	96	12.71	12.16	0.9	0.55
	106	12.89	12.22	0.99	0.61
	120	13.12	12.32	1.105	0.71
	136	13.41	12.4	1.25	0.79
	152	13.71	12.48	1.4	0.87
	170	14.03	12.57	1.56	0.96
	190	14.38	12.67	1.735	1.06
	210	14.71	12.79	1.9	1.18
	230	15.05	12.895	2.07	1.285
	252	15.41	13.005	2.25	1.395
	279	15.85	13.14	2.47	1.53
	305	16.32	13.235	2.705	1.625
	336	16.82	13.385	2.955	1.775
W14	22	13.74	5	0.335	0.23
W14	26	13.91	5.025	0.42	0.255
	30	13.84	6.73	0.385	0.27
	34	13.98	6.785	0.455	0.285
	38	14.1	6.77	0.515	0.31
W14	43	13.66		0.53	0.305
	48	13.79	8.03	0.595	0.34
	53	13.92	8.06	0.66	0.37
	61	13.89	9.995	0.645	0.375
	68	14.04	10.035	0.72	0.415
	74	14.17	10.07	0.785	0.45
	82	14.31	10.13	0.855	0.51

Wide Flange Beams W14-W16

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W14	90	14.02	14.52	0.71	0.44
	99	14.16	14.565	0.78	0.485
	109	14.32	14.605	0.86	0.525
	120	14.48	14.67	0.94	0.59
	132	14.66	14.725	1.03	0.645
W14	145	14.78	15.5	1.09	0.68
	159	14.98	15.565	1.19	0.745
	176	15.22	15.65	1.31	0.83
	193	15.48	15.71	1.44	0.89
	211	15.72	15.8	1.56	0.98
	233	16.04	15.89	1.72	1.07
	257	16.38	15.995	1.89	1.175
	283	16.74	16.11	2.07	1.29
	311	17.12	16.23	2.26	1.41
	342	17.54	16.36	2.47	1.54
	370	17.92	16.475	2.66	1.655
	398	18.29	16.59	2.845	1.77
	426	18.67	16.695	3.035	1.875
	455	19.02	16.835	3.21	2.015
	500	19.6	17.01	3.5	2.19
	550	20.24	17.2	3.82	2.38
	605	20.92	17.415	4.16	2.595
	665	21.64	17.65	4.52	2.83
	730	22.42	17.89	4.91	3.07
W16	26	15.69	5.5	0.345	0.25
	31	15.88	5.525	0.44	0.275
	36	15.86	6.985	0.43	0.295
	40	16 01	6.995	0.505	0.305
	45	16.13	7.035	0.565	0.345
	50	16.26	7.07	0.63	0.38
	57	16.43	7.12	0.715	0.43

Wide Flange Beams W16-W18

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W16	67	16.33	10.235	0.665	0.395
	77	16.52	10.295	0.76	0.455
	89	16.75	10.365	875	0.525
	100	16.97	10.425	0.985	0.585
W18	35	17.7	6	0.425	0.3
	40	17.9	6.015	0.525	0.315
	46	18.06	6.06	0.605	0.36
W18	41	17.7	7.45	0.53	0.32
	45	17.86	7.48	0.5	0.34
	50	17.99	7.495	0.57	0.355
	55	18.11	7.53	0.63	0.39
	60	18.24	7.555	0.695	0.415
	65	18.35	7.59	0.75	0.45
	71	18.47	7.635	0.81	0.495
W18	76	18.21	11.035	0.68	0.425
	86	18.39	11.09	0.77	0.48
	97	18.59	11.145	0.87	0.535
	106	18.73	11.2	0.94	0.59
	119	18.97	11.265	1.06	0.655
	130	19.25	11.16	1.2	0.67
	143	19.49	11.22	1.32	0.73
	158	19.72	11.3	1.44	0.81
	175	20.04	11.375	1.59	0.89
	192	20.35	11.455	1.75	0.96
	211	20.67	11.555	1.91	1.06
	234	21.06	11.65	2.11	1.16
	258	21.46	11.77	2.3	1.28
	283	21.85	11.89	2.5	1.4
	311	22.32	12.005	2.74	1.52

Wide Flange Beams W21

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W21	44	20.66	6.5	0.45	0.35
	50	20.83	6.53	0.535	0.38
	57	21.06	6.555	0.65	0.405
W21	48	20.62	8.14	0.43	0.035
	55	20.8	8.22	0.522	0.375
	62	20.99	8.24	0.615	0.4
	68	21.13	8.27	0.685	0.43
	73	21.24	8.295	0.74	0.455
	83	21.43	8.355	0.835	0.515
	93	21.62	8.42	0.93	0.58
W21	101	21.36	12.29	0.8	0.5
	111	21.51	12.34	0.875	0.55
	122	21.68	12.39	0.96	0.6
	132	21.83	12.44	1.035	0.65
	147	22.06	12.51	1.15	0.72
	166	22.48	12.42	1.36	0.75
	182	22.72	12.5	1.48	0.83
	201	23.03	12.56	1.63	0.91
	223	23.35	12.68	1.79	1
	248	23.74	12.775	1.99	1.11
	275	24.13	12.89	2.19	1.22

Wide Flange Beams W24

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W24	55	23.57	7.005	0.505	0.395
	62	23.74	7.040	0.590	0.430
W24	56	23.48	8.9	0.46	0.355
	61	23.56	8.93	0.5	0.38
	68	23.73	8.965	0.585	0.415
	76	23.92	8.99	0.68	0.44
	84	24.1	9.2	0.77	0.47
	94	24.31	9.065	0.875	0.515
	103	24.53	9	0.98	0.55
W24	104	24.06	12.75	0.75	0.5
	117	24.26	12.8	0.85	0.55
	131	24.48	12.855	0.96	0.605
	146	24.74	12.9	1.09	0.65
	162	25	12.995	1.22	0.705
	176	25.24	12.89	1.34	0.75
	192	25.47	12.95	1.46	0.81
	207	25.71	13.01	1.57	0.87
	229	26.02	13.11	1.73	0.96
	250	26.34	13.185	1.89	1.04
	279	26.73	13.305	2.09	1.16
	306	27.13	13.405	2.28	1.26
	335	27.52	13.52	2.48	1.38
	370	27.99	13.66	2.72	1.52

Wide Flange Beams W27-W30

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W27	84	26.71	9.96	0.64	0.46
	94	26.92	9.99	0.745	0.49
	102	27.09	10.015	0.83	0.515
	114	27.29	10.07	0.93	0.57
	129	27.63	10.01	1.1	0.61
W27	146	27.38	13.965	0.975	0.605
	161	27.59	14.02	1.08	0.66
	178	27.81	14 085	1.19	0.725
	194	28.11	14.035	1.34	0.75
	217	28.43	14.115	1.5	0.83
	235	28.66	14.19	1.61	0.91
	258	28.98	14.27	1.77	0.98
	281	29.29	14.35	1.93	1.06
	307	29.61	14.445	2.09	1.16
	336	30	14.545	2.28	1.26
	368	30.39	14.665	2.48	1.38
W30	90	29.53	10.4	0.61	0.47
	99	29.65	10.45	0.67	0.52
	108	29.83	10.475	0.76	0.454
	116	30.01	10.495	0.85	0.565
	124	30.17	10.515	0.93	0.585
	132	30.31	10.545	1	0.615
	148	30.67	10.48	1.18	0.65

Wide Flange Beams W30-W33

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W30	173	30.44	14.985	1.065	0.655
	191	30.68	15.04	1.185	0.71
	211	30.94	15.105	1.315	0.775
	235	3130	15.055	1.5	0.83
	261	31.61	15.155	1.65	0.93
	292	32.01	15.255	1.85	1.02
	326	32.4	15.37	2.05	1.14
	357	32.8	15.47	2.24	1.24
	391	33.19	15.59	2.44	1.36
W33	118	32.86	11.48	0.74	0.55
	130	33.09	11.51	0.855	0.58
	141	33.3	11.535	0.96	0.605
	152	33.49	11.565	1.055	0.635
	169	33.82	11.5	1.22	670
W33	201	33.68	15.745	1.15	0.715
	221	33.93	15.805	1.275	0.775
	241	34.18	15.86	1.4	0.83
	263	34.53	15.805	1.57	0.87
	291	34.84	15.905	1.73	0.96
	318	35.16	15.985	1.89	1.04
	354	35.55	16.1	2090	1.16
	387	35.95	16.2	2.28	1.26

Wide Flange Beams W36

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W36	135	35.55	11.9	0.79	0.6
	150	35.85	11.975	0.94	0.625
	160	36.01	12	1.02	0.65
	170	36.17	12.03	1.1	0.68
	182	36.33	12.075	1.18	725
	194	36.49	12.115	1.26	0.765
	210	36.69	12.18	1.36	0.83
	232	37.12	12.12	1.57	0.96
	256	37.43	12.215	1.73	0.87
W36	231	36.49	16.47	1.26	0.76
	247	36.67	16.51	1.35	0.8
	262	36.85	16.55	1.44	0.84
	282	37.11	16.595	1.57	0.885
	302	37.33	16.655	1.68	0.945
	330	37.67	16.63	1.85	1.02
	361	37.99	16.73	2.01	1.12
	395	38.41	16.83	2.2	1.22
	441	38.85	16.965	2.44	1.36
	487	39.33	17.086	2.681	1.5
	529	39.8	17.205	2.909	1.61
	652	41.06	17.559	3.539	1.968

Wide Flange Beams W40-W44

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
W40	149	38.2	11.81	0.83	0.63
	167	38.59	11.81	1.025	0.65
	183	38.98	11.81	1.22	0.65
	211	39.37	11.811	1.413	0.752
	235	39.68	11.89	1.575	0.831
	264	40	11.929	1.728	0.961
	278	40.16	11.968	1.811	1.024
	294	40.39	12.008	1.929	1.059
	327	40.79	12.126	2.13	1.181
	331	40.79	12.165	2.126	1.22
	392	41.57	12.362	2.52	1.417
W40	199	38.67	15.75	1.065	0.65
	215	38.98	15.75	1.22	0.65
	249	39.38	15.75	1.42	0.75
	277	39.69	15.83	1.575	0.83
	297	39.84	15.825	1.65	0.93
	324	40.16	15.905	1.81	1
	362	40.55	16.02	2.01	1.12
	372	40.63	16.06	2.05	1.16
	397	40.95	16.12	2.2	1.22
	431	41.26	16.22	2.363	1.339
	503	42.05	16.417	2.756	1.535
	593	42.99	16.693	3.228	1.791
W44	230	42.91	15.75	1.22	0.71
	262	43.31	15.75	1.42	0.79
	290	43.62	15.83	1.58	0.87
	335	44.02	15.95	1.77	1.02

Standard "H" Pile Beams

Standard Lengths 20'-70'		A	B	C	D
Section Number	Weight Per/Foot	Depth of Section	Flange Width	Flange Thickness	Web Thickness
Section Number	lb.	in.	in.	in.	in.
HP 8	36	8.02	8.155	0.445	0.455
HP 10	42	9.7	10.075	0.420	0.415
	57	9.99	10.225	0.565	0.565
HP 12	53	11.78	12.045	0.435	0.435
	63	11.94	12.125	0.515	0.515
	74	12.13	12.215	0.610	0.605
	84	12.28	12.295	0.685	0.635
HP 14	73	13.61	14.585	0.505	0.506
	89	13.83	14.695	0.615	0.615
	102	14.01	14.785	0.705	0.705
	117	14.21	14.885	0.805	0.805

Beams

SPIRIT METALS

Forged in Fire
